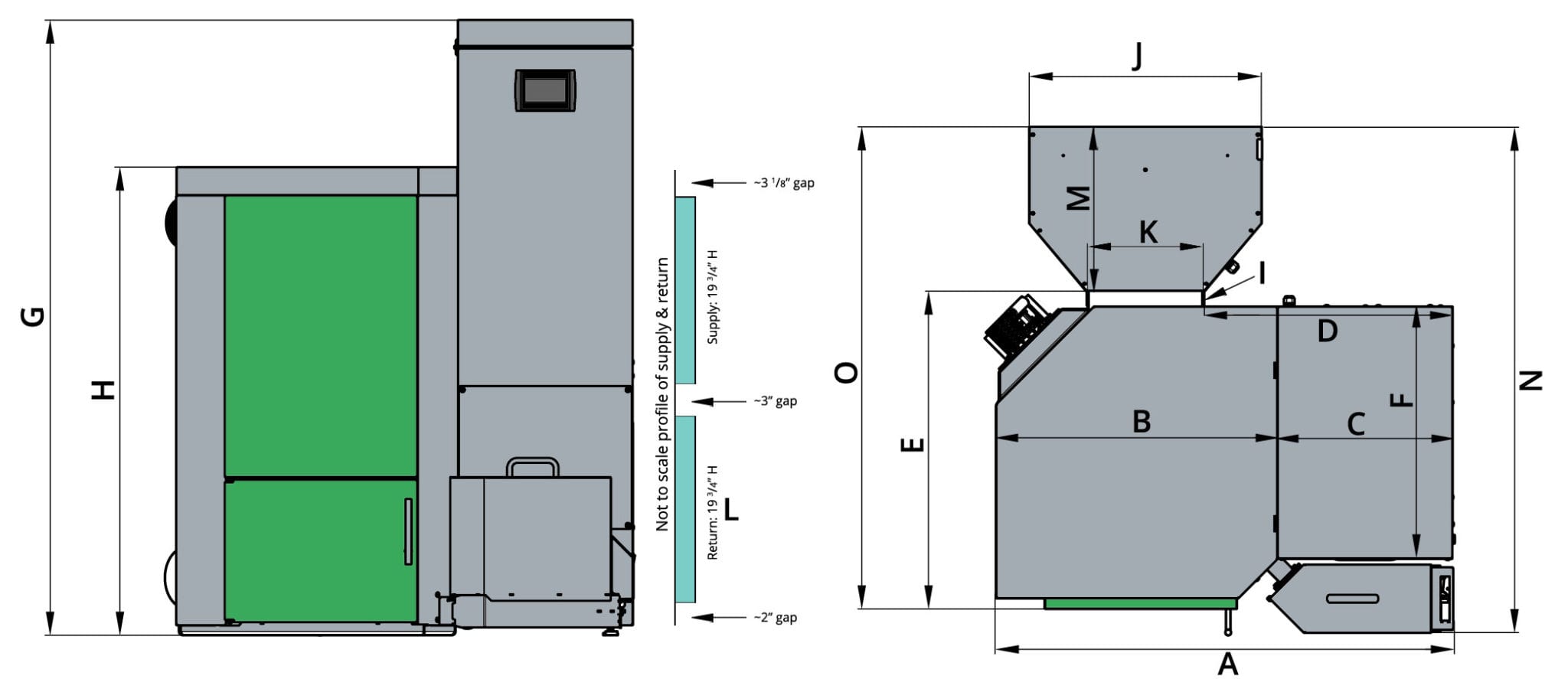

| Furnace-rated power BTU/hr | | 96,000 | | |
| Width - total | A | 46 1/4" | | |
| Width - furnace | B | 28 9/16" | | |
| Width - pellet container or vacuum suction system | C | 17 13/16" | | |
| Distance to side of plenum | D | 25 3/8" | | |
| Depth - furnace | E | 32 5/8" | | |
| Depth - pellet container or vacuum suction system | F | 25 11/16" | | |
| Height - total | G | 62 11/16" | | |
| Height - furnace | H | 47 11/16" | | |
| Supply & return projections from steel | I | 1 7/8" | | |
| Supply & return projections from top panel | I | 1 9/16" | | |
| Flue height (connection) | | 6" | | |
| Flue diameter | | 6" | | |
| Overall crated weight (lbs) | | 1,000 | | |
| FAN | | Standard | Large | |
| Width | J | 19 3/4" | 27 3/4" | |
| Width - plenum exterior | K | 11 13/16" | 11 13/16" | |
| Height - plenum | L | 19 3/4" | 19 3/4" | |
| Depth | M | 18 3/16" | 27 3/4" (includes plenum extension to fan box) | |
| FURNACE (with fan) | | Standard | Large | |
| Depth - total | N | 51 1/2" | 62 9/16" | |
| Depth - furnace with fan | O | 49 5/16" | 60 3/8" | |
| | | | |
